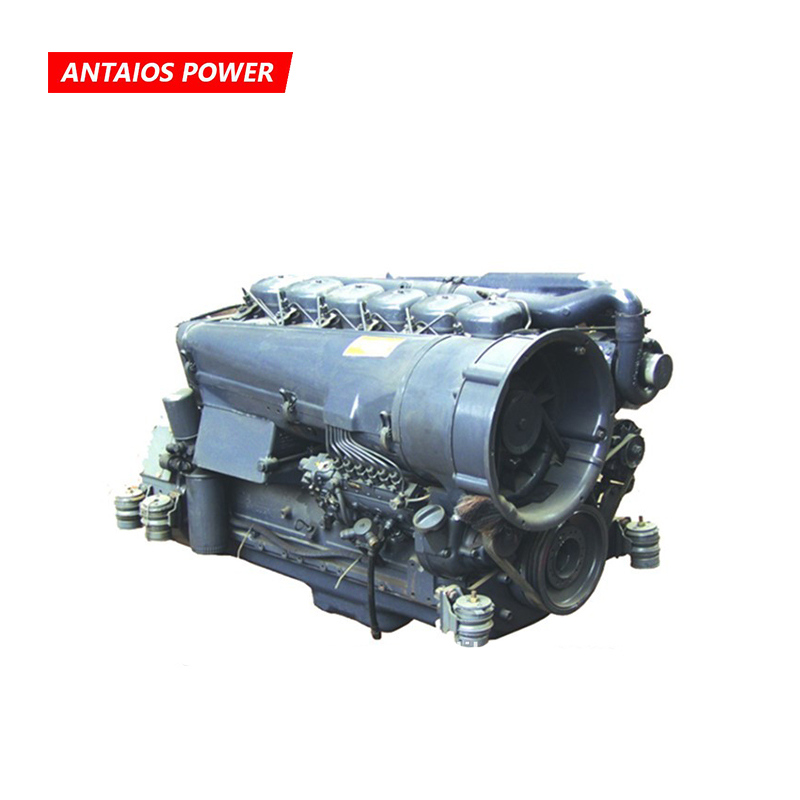

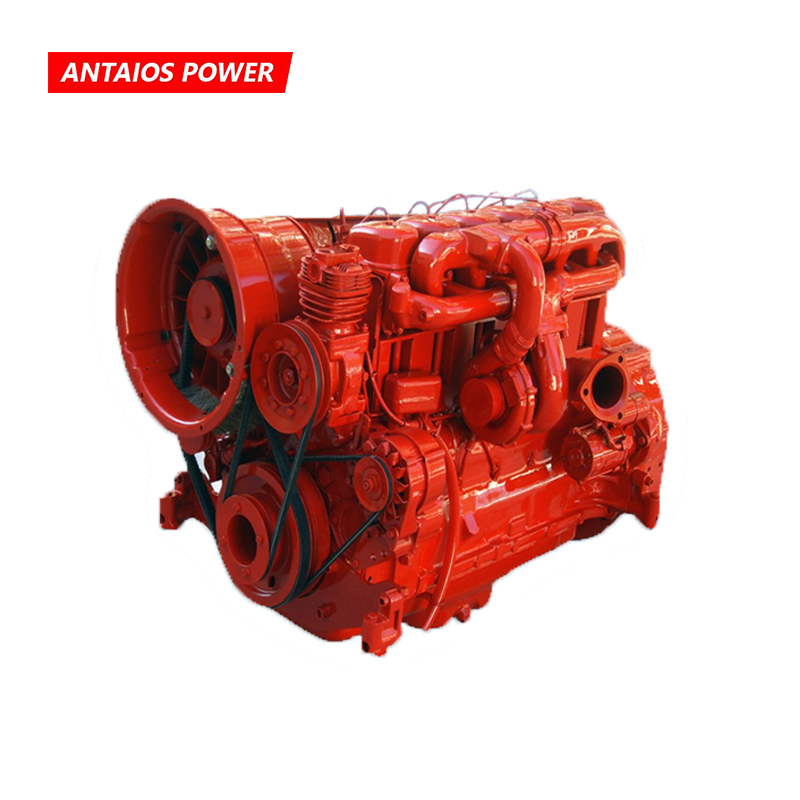

BF6L913
Deutz
Technical Parameter
Model | F4L914 | BF6L914 | BF6L914C | BF6L913 | BF6L913C |
No. of Cly | 4 | 6 | 6 | 6 | 6 |
Bore/stroke(mm) | 102/132 | 102/132 | 102/132 | 102/125 | 102/125 |
Displacement(L) | 4.314 | 6.472 | 6.472 | 6.128 | 6.128 |
Air-intake system | Naturally aspirated | Turbocharged | Turbocharged | Turbocharged | Turbocharged after cooling |
Rated Power(kw) | 41-59 | 89-118 | 125-137 | 112-118 | 125-141 |
Rated Speed(kw) | 1500-2500 | 1500-2500 | 2300-2500 | 2300-2500 | 1500-2500 |
Compression ratio | 20 | 18 | 18 | 18 | 18 |
Direction of rotation(facing cooling blower) | Clockwise | Clockwise | Clockwise | Clockwise | Clockwise |
Dimension(mm) | 813x679x821 | 1108x776x821 | 1123x714x863 | 1134x711x910 | 1134x711x990 |
Weight(kg) | 310 | 485 | 510 | 485 | 510 |
Section plane of engine
STANDARD CONFIGURATION
1. Oil filter
2. Diesel filter
3. Oil bath air cleaner with pre-cleaner and dust collector
4. 12V/24V starting motor
5. 12V/24V charged generator
6. Diesel engine electrical shutdown device(only generator set)
7. Automatic belt tension unit
8. V-belt break alarm device
9. Belt guard(only for generator set)
10. 4 Engine elastic supports
11. SAE Flywheel and housing
12. Oil temperature sensor and alarm switch (VDO analog signal)
13.Oil pressure sensor and alarm switch (VDO analog signal)
14. Diesel engine accelerator adjust device (only generator set)
15.Mechanical adjusting speed device
16. Diesel engine paint(gray)
OPTIONAL CONFIGURATION
1.Absorption type exhaust silencer suitable for remote mounting
2.Spark arrestor type exhaust silencer
3.Exhaust manifold-cum-silencer (only for non-turbo charge)
4.Diesel engine supports suitable for rigidly mountings
5.Gear driven hydraulic pump
6.Belt driven air compressor
7.Hydraulic oil radiator
8.Starting aid for engine starting below minus 5'C down to minus 40C12V/24V Diesel engine electrical adjusting speed control deviceMechanical shutdown lever
9.Diesel engine over speed guard device
10.All kinds of meter of diesel engine
11.Industrial power take -offs
