TBD234V6
Deutz
Technical Parameter
Model | TBD234V6 | TBD234V8 | TBD234V12 | TD234V6 | TD234V8 | |||||||||||
No. of Cly | 6 | 8 | 12 | 6 | 8 | |||||||||||
Bore/stroke(mm) | 128/140mm | 128/140mm | 128/140mm | 128/140mm | 128/140mm | |||||||||||
Unit Cylinder Volume(dm³) | 1.8 | 1.8 | 1.8 | 1.8 | 1.8 | |||||||||||
Rated Power(kw) | 186 | 222 | 242 | 249 | 296 | 323 | 373 | 444 | 485 | 116 | 132 | - | 160 | 186 | - | |
Rated Speed(r/min) | 1500 | 1800 | 2100 | 1500 | 1800 | 2100 | 1500 | 1800 | 2100 | 1500 | 1800 | 2100 | 1500 | 1800 | 2100 | |
Cornpression ratio | 15:1 | 15:1 | 15:1 | 15:1 | 15:1 | |||||||||||
Direction of rotation(facing flywheel) | Counter clock wise | Counter clock wise | Counter clock wise | Counter clock wise | Counter clock wise | |||||||||||
Dimension(mm) | 1660*738*1582 | 1810*738*1637 | 2114*738*1555 | 1660*738*1582 | 1810*738*1637 | |||||||||||
Weight(kg) | 1300 | 1500 | 2200 | 1300 | 1500 | |||||||||||

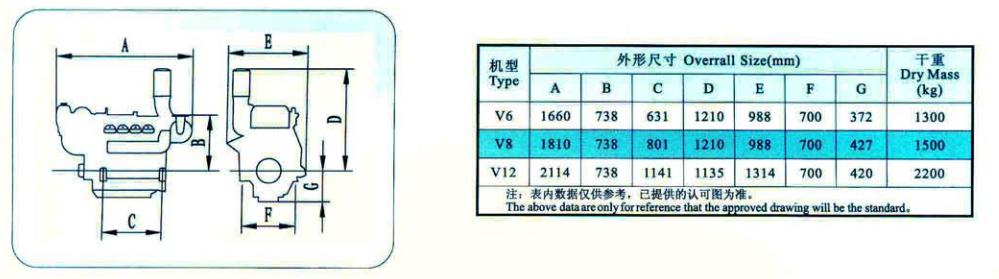

Section plane of engine
STANDARD CONFIGURATION
1. Oil filter
2. Diesel filter
3. 12V/24V starting motor
4. 24V/28V charged generator
5. Preheating Plug 12V/24V
6. Engine supports
7. SAE Flywheel and housing
8. Electronic/Mechanical Speed Governor
9. Measure tool &Sensors, electrical accessories
10. Diesel engine paint (gray)
OPTIONAL CONFIGURATION
1. Air cleaner
2. Exhaust muffler
3. Hydraulic oil radiator
4. Gear driven hydraulic pump
5. Belt driven air compressor
6. Cooling Fan
7. Water tank
8. All kinds of meter of diesel engine
