ANTAIOS POWER developed a customized QSB6.7-M marine engine configuration for a high-speed sport fishing boat. The vessel is a 12.9-meter Chinese-built fiberglass sport fishing boat with an enclosed pilothouse and a maximum speed of 32 knots. The vessel's gearbox reduction ratio is fixed, and the vessel's speed is controlled primarily by adjusting the engine speed.
The vessel required the engine to support three distinct operating conditions:
The engine is subjected to a high load during rapid acceleration and must be capable of operating under high-speed cruising conditions.
The vessel also requires low-speed and trolling-speed operation capability, with the low idle speed adjustable to approximately 600 rpm.
The vessel speed is controlled by adjusting the engine speed.
To ensure that our solution can meet the actual operating requirements, we carried out customized design from the following three aspects:
Customizable rated power range: 350–420 HP, maximum design speed is 3000 rpm, suitable for high-speed marine operating conditions.
The low idle speed can be adjusted to 600 RPM to meet the power output requirements for low-speed and very-low-speed vessel operation.

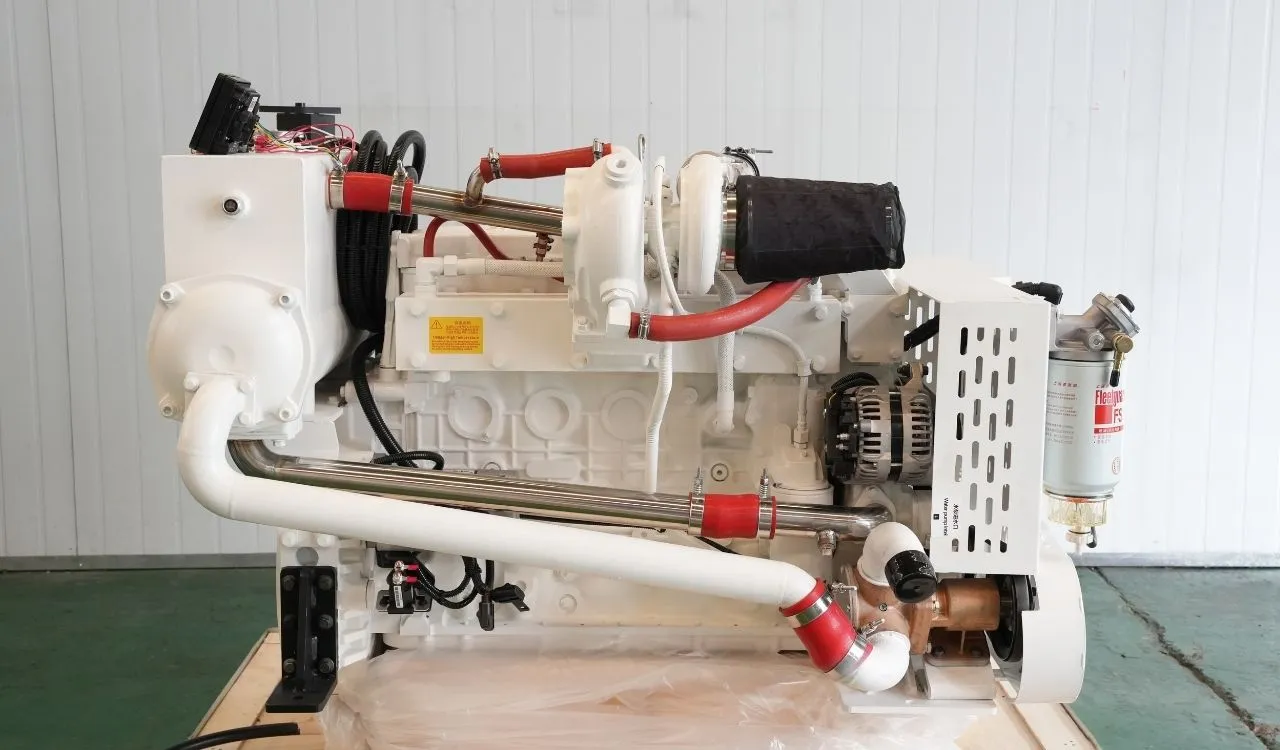

The engine has a compact, box-shaped profile, a low overall height, and a lightweight design. The ship's hatch is rectangular, which greatly facilitates shipyard lifting operations and quick engine replacement.
The marine configuration integrates a seawater pump, a seawater-to-freshwater heat exchanger, and an intercooler to meet marine cooling requirements;
A hydraulic power output interface is reserved, which can simultaneously supply power to the gearbox shift mechanism and hydraulic steering system.
Saltwater corrosion protection: All seawater circulation pipelines, heat exchangers, and intercoolers are coated with saltwater-resistant anti-corrosion coatings, which can resist high-salinity seawater corrosion and reduce scaling and blockage.
The engine is equipped with electronic throttle control and is compatible with a mechanical cable throttle system. It can connect directly to the cable-operated throttle lever of an existing vessel, making it suitable for both new-build and repower projects.
The supplied instrument panel supports fault-code communication and can read all basic operating data of the engine in real time. Fault diagnosis is simple and subsequent maintenance is easier.
High- and Low-Speed Operation：Balancing low-speed and trolling-speed operation with high-speed cruising.
Fixed-Ratio Gearbox Matching：Meeting different vessel speed requirements through engine speed adjustment.
Compact Installation：The compact, low-profile structure makes hoisting and installation easier for the shipyard.
Integrated Marine Systems：A high level of integration for marine cooling components and hydraulic interfaces.
Flexible Control：Compatible with electronic throttle control, mechanical cable throttle control, and engine operating-data monitoring.
Not necessarily. To help us more accurately determine whether this engine can meet your requirements, we usually need you to provide the required engine power and rated speed for confirmation. Currently, the QSB6.7-M engine supplied by ANTAIOS POWER can reach a maximum power output of 420 hp and a speed of up to 3000 rpm. If you have higher requirements, you can also consult our technical team for confirmation.
At present, the low idle speed of this customized QSB6.7-M marine engine can be adjusted to 600 rpm. If you require an even lower idle speed, our technical team will need to confirm additional vessel details with you.
In this case, the selected solution uses a fixed-ratio gearbox, with vessel speed controlled by adjusting the engine speed.
A hydraulic power output interface is reserved, which can simultaneously supply power to the gearbox shift mechanism and hydraulic steering system.
The engine is equipped with electronic throttle control and is compatible with a mechanical cable throttle system. It can connect directly to the cable-operated throttle lever of an existing vessel, making it suitable for both new-build and repower projects.
ANTAIOS POWER can provide you with a customized power solution for sport fishing boats based on your vessel’s basic specifications, target speed, gearbox information, and installation conditions. Our technical team can design a suitable technical solution for you. After you confirm the solution, we will also sign a technical agreement with you and ensure delivery in accordance with the agreed technical specifications. Before delivery, the customized QSB6.7-M marine engine supplied by ANTAIOS POWER will also undergo bench testing in accordance with the confirmed technical specifications, and we will provide you with test videos. If you currently need a high-speed marine engine, please feel free to contact us for a free technical solution.
